Machine manufacturer: Voith Year of finalre-construction: 2010
Working width: 4500 mm to pope roll
Wire width: 4800 mm
Grammage range: 18-80 gsm
Max reel Ø: 1800 mm
Sections of the machine:

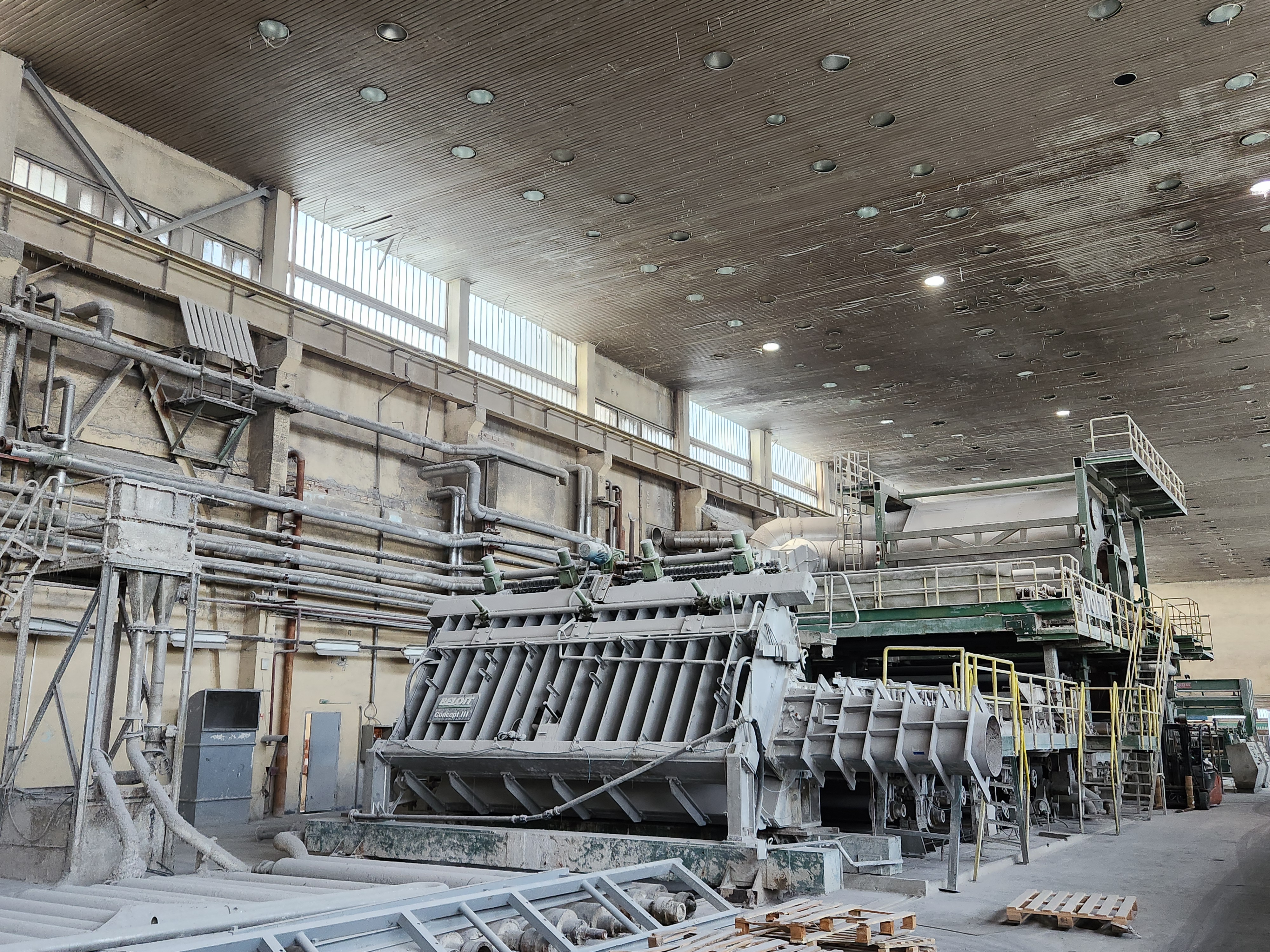

- Headbox Beloid Concept3 type Hydraulic. 1990 production by TCM Italy (original head box is also available).
- Wire Section:
• Flat wire length: 33.000 mm with:• breast roll (Ø 650 mm, length 5000 mm)
• PE forming box
• Couch roll (Ø 910 mm, length 5000 mm)
• 10 ceramic and 5 plastic hydrofoils
• 5 suction boxes with PE foils and 2 spare part.
-Felts Section:
• Pick-up box vacuum type
• Felt 30.000 mm length.
• Press - rubber roll Ø 866 mm x 5000 mm blind drilled.
• 11 felt rolls plus 25 rolls available if needed for the new project.
• 1 spiral felt rolls
• 7 felts suction boxes

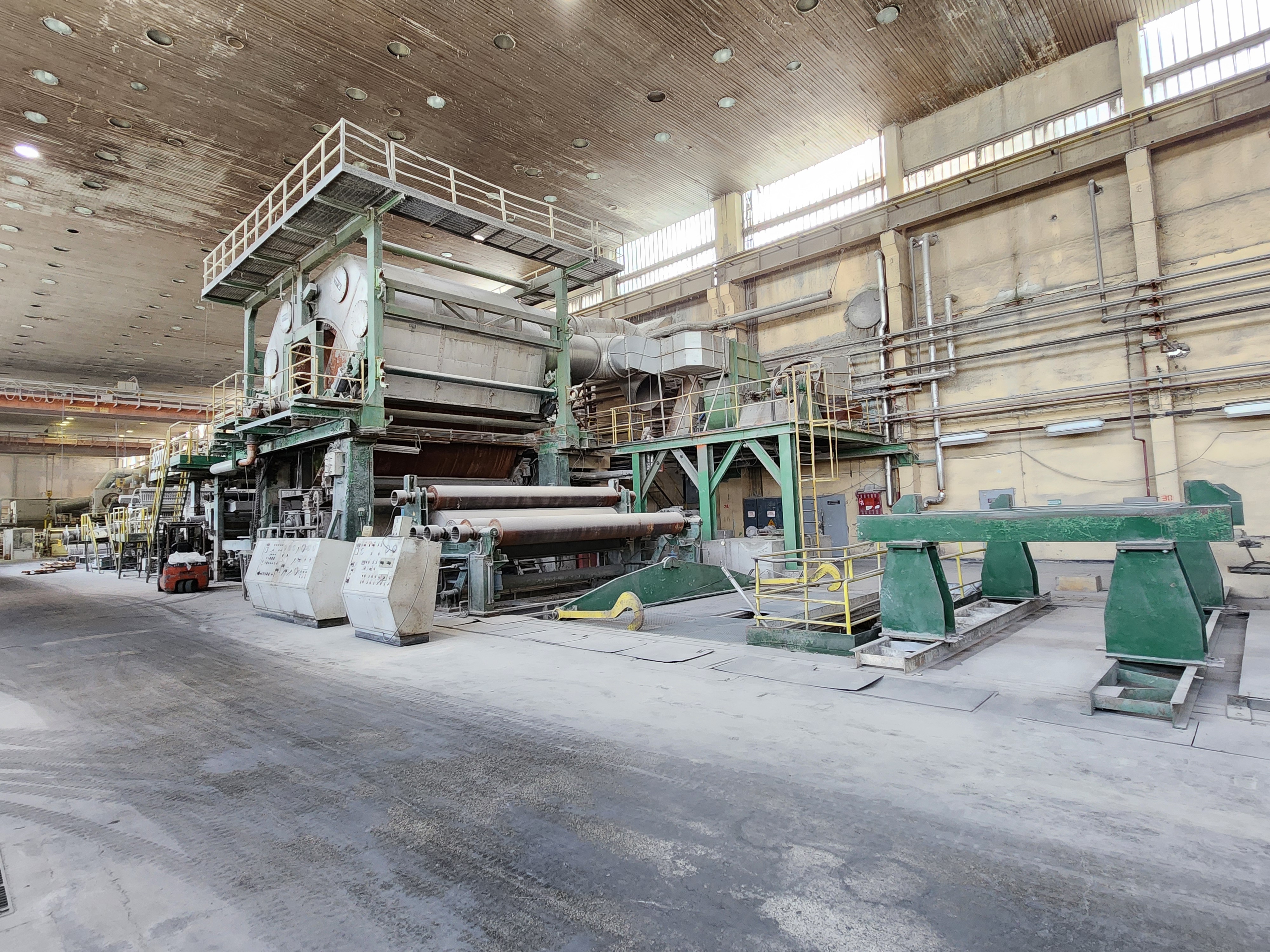

- Drying Section:

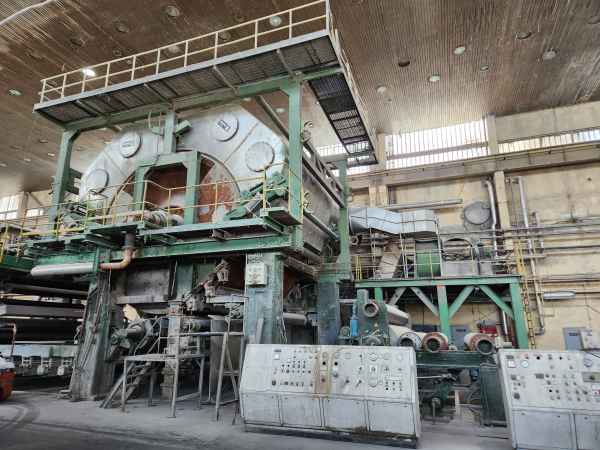

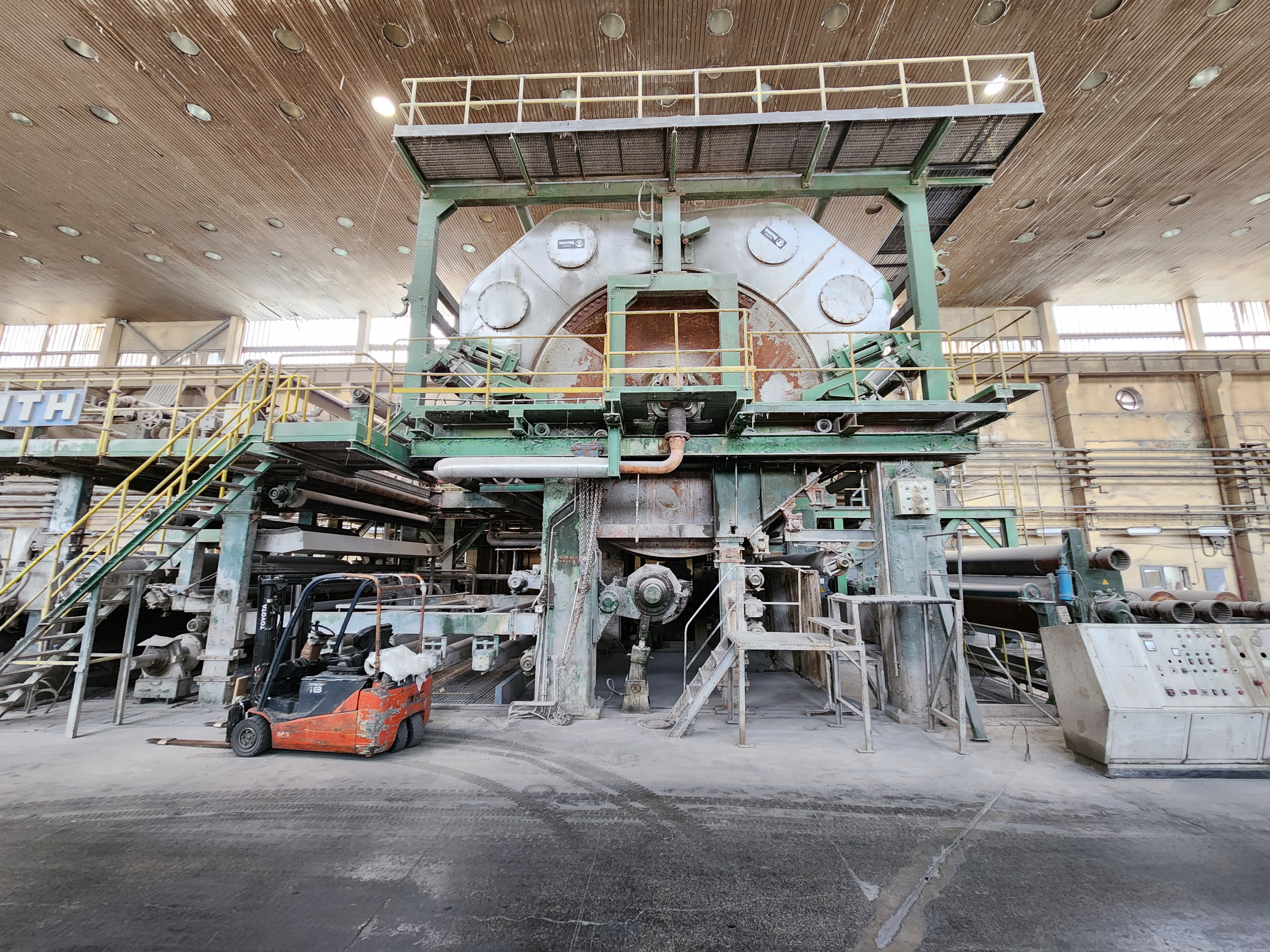

• Yankee cylinder, Ø 5000 mm, length 5000 mm. (to replace depending on project)
• Steam hood for the Yankee cylinder with twin design.
• 2 oscillating doctor blades and one cleaning blade.
• Pope winder, with drum Ø 910 mm, length 5000 mm
• Rewinder: Jagenberg, trim width 4600 mm, 3 plies, 10 formatting knives, AC drives with inverters, Siemens control.
• Scale
• Shrink wrapper
- 11021 MG4500mm drawing (319.96 KB) :
- layout of paper machine
