Voith CW 2500 Compact Washer
Ash washer and thickener
excellent condition
hardly any operating hours
Use:
The Compact Washer is used in stock preparation to remove fine solids (ash, inactive fines, ink particles).
It is also used as a thickener in the following process steps
Working principle:

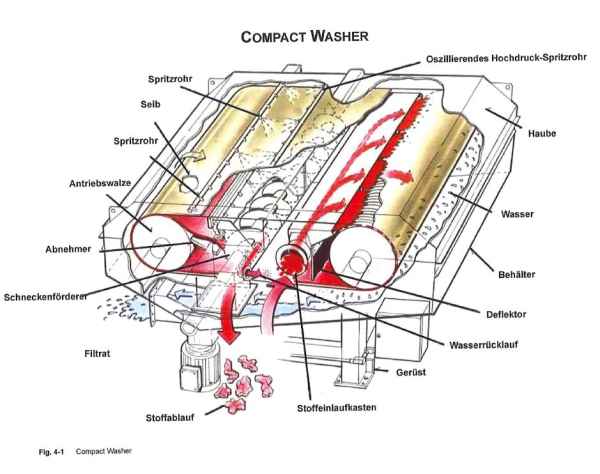

► The slot nozzle of the sump and then spraying into the joint between the endless screen and the grooved breast roller
► The one-sided dewatering between the breast roll and the screen creates a fiber fleece on the screen and reaches the drive roller. The second stage of the washing process takes place thanks to the smooth surface.
► The pressure on the nonwoven sticks to the drive roller, where it is removed by an oscillating, contactless doctor blade. Finally, they are transported to the next process step by screw conveyor
► The fiber fleece falls into a filling funnel and the filtrate collects in a basin and is directed to a ventilation container
excellent condition
hardly any operating hours
Use:
The Compact Washer is used in stock preparation to remove fine solids (ash, inactive fines, ink particles).
It is also used as a thickener in the following process steps
Working principle:
► The slot nozzle of the sump and then spraying into the joint between the endless screen and the grooved breast roller
► The one-sided dewatering between the breast roll and the screen creates a fiber fleece on the screen and reaches the drive roller. The second stage of the washing process takes place thanks to the smooth surface.
► The pressure on the nonwoven sticks to the drive roller, where it is removed by an oscillating, contactless doctor blade. Finally, they are transported to the next process step by screw conveyor
► The fiber fleece falls into a filling funnel and the filtrate collects in a basin and is directed to a ventilation container
Sieve:
Screen construction: Voith Stock form CWI screens
Length: 6430mm
Width: 2460mm
Rollers:
Drive roller: Ø 800mm
Breast roll: Ø 806mm
Coating breast roll:
Thickness: 22mm
Material: Major Press
Hardness: 12 P.J.
Coating drive roller:
Thickness: 19mm
Material: Black Stone S
Hardness: 0-1 P.J.
Inlet box:
Width: 2185mm
Lip opening: 5 -12 mm
oscillating spray tube:
Nozzle type: self-cleaning nozzle
Nozzle: 36090-0006-316SS M 28 x 1.5
Number of nozzles: 20
Stroke: 150mm
Lifting speed: 0.476m / min
Operating cycle (duration): 19 seconds
Operating pressure (max. 20 bar): bar 17
Water consumption (max): l / min 110 - 120
Water quality: fresh water
Depressurization and nozzle cleaning cycle: 1 hour
Knockdown spray pipe:
Nozzle type: Veejet
Nozzle: H1 / 4 ”NPT VV-316SS 730308
Number of nozzles: 21
Operating pressure: 7 bar
Water consumption: 40l / min
Water quality: fresh water
Spray pipe for cleaning the slide:
Nozzle type: Veejet
Nozzle: H1 / 4 ”NPT VV-316SS 8015
Number of nozzles: 19
Operating pressure: 3 bar
Water consumption: 112l / min
Water quality (max. 60 ppm): purified water
Screen construction: Voith Stock form CWI screens
Length: 6430mm
Width: 2460mm
Rollers:
Drive roller: Ø 800mm
Breast roll: Ø 806mm
Coating breast roll:
Thickness: 22mm
Material: Major Press
Hardness: 12 P.J.
Coating drive roller:
Thickness: 19mm
Material: Black Stone S
Hardness: 0-1 P.J.
Inlet box:
Width: 2185mm
Lip opening: 5 -12 mm
oscillating spray tube:
Nozzle type: self-cleaning nozzle
Nozzle: 36090-0006-316SS M 28 x 1.5
Number of nozzles: 20
Stroke: 150mm
Lifting speed: 0.476m / min
Operating cycle (duration): 19 seconds
Operating pressure (max. 20 bar): bar 17
Water consumption (max): l / min 110 - 120
Water quality: fresh water
Depressurization and nozzle cleaning cycle: 1 hour
Knockdown spray pipe:
Nozzle type: Veejet
Nozzle: H1 / 4 ”NPT VV-316SS 730308
Number of nozzles: 21
Operating pressure: 7 bar
Water consumption: 40l / min
Water quality: fresh water
Spray pipe for cleaning the slide:
Nozzle type: Veejet
Nozzle: H1 / 4 ”NPT VV-316SS 8015
Number of nozzles: 19
Operating pressure: 3 bar
Water consumption: 112l / min
Water quality (max. 60 ppm): purified water
