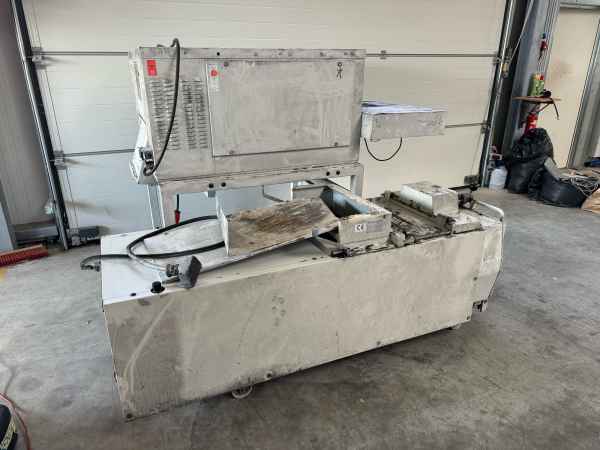

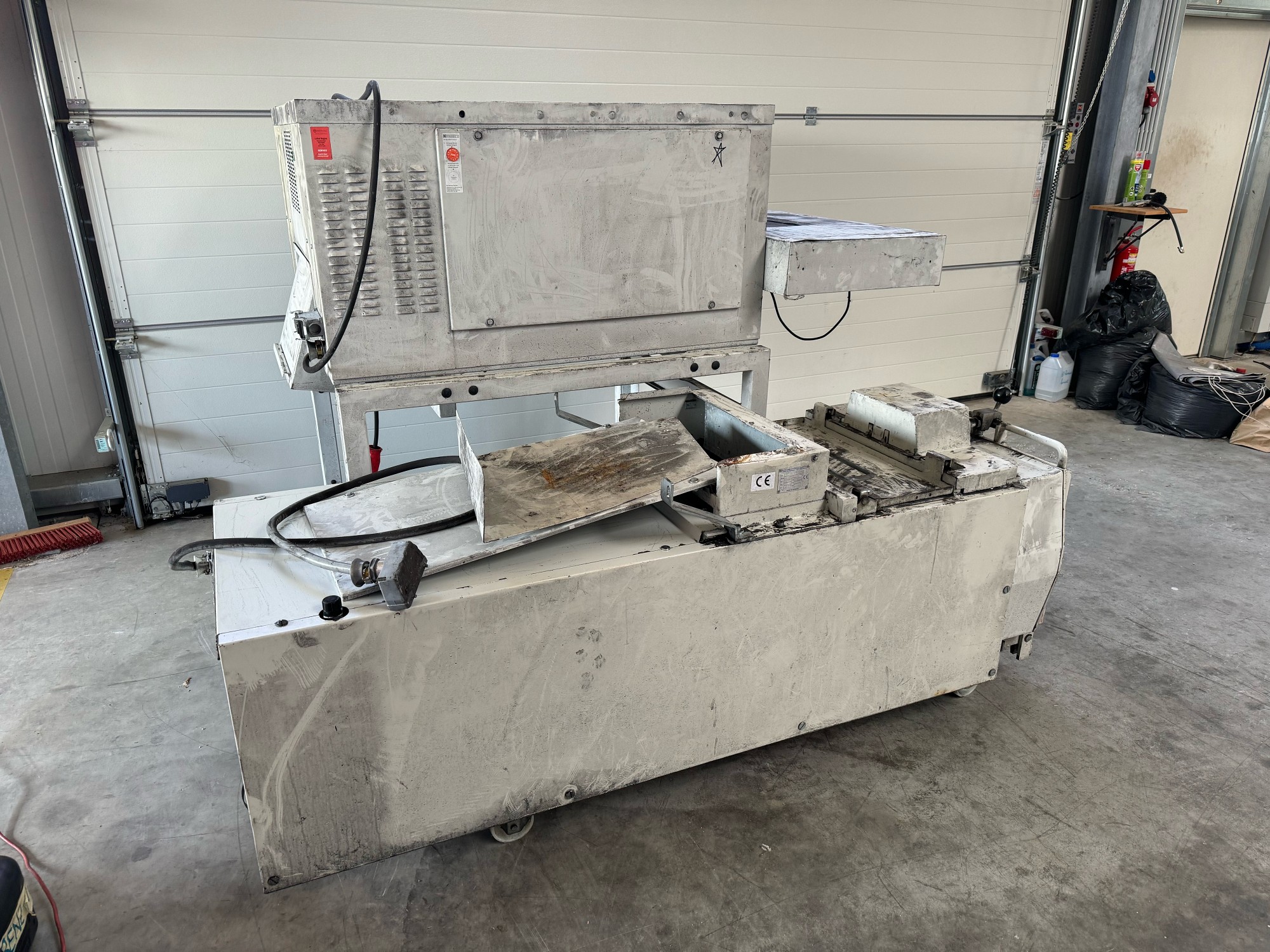

Industrial shredder from Schleicher / Intimus
Type 16.86

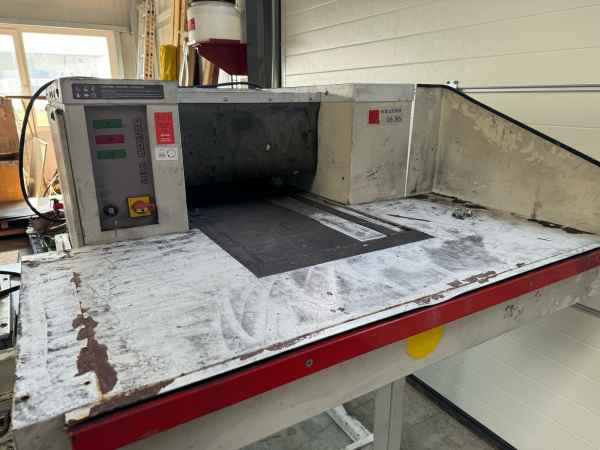

with loading conveyor for fatigue-free work
Technical data:

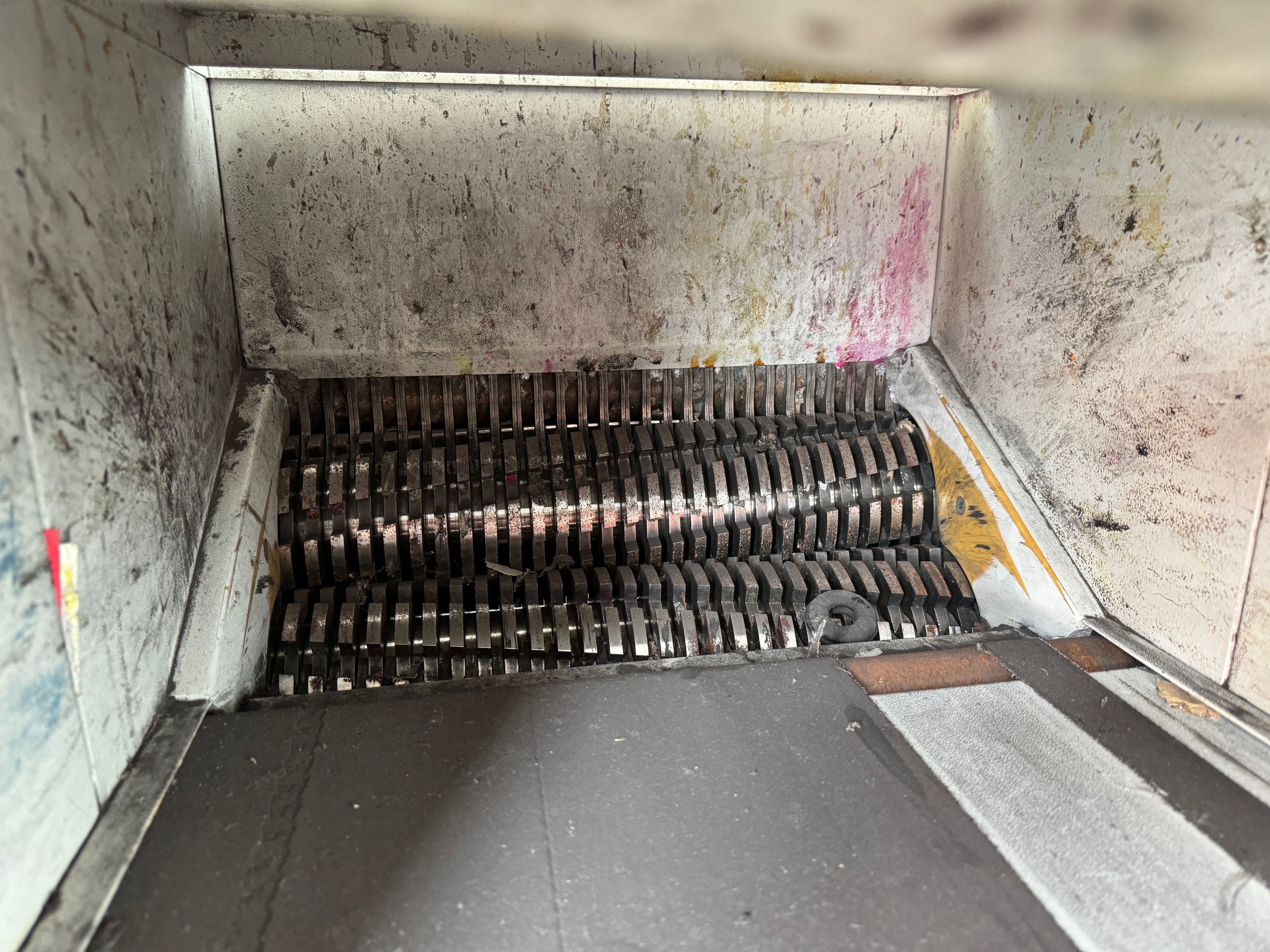

1.) Shredders

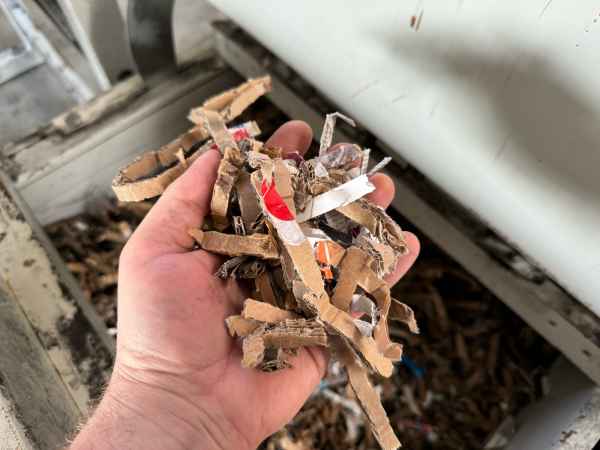

- Cutting sizes:
10x70mm
6x50mm
- Cutting performance (in two batches)
10 x 70 mm: 470 - 520 sheets (70g/m2)
6 x 50 mm: 300 - 330 sheets (70g/m2)
- Working width: 500 mm
- Power: 11.5 kW
- Weight: approx. 726 kg

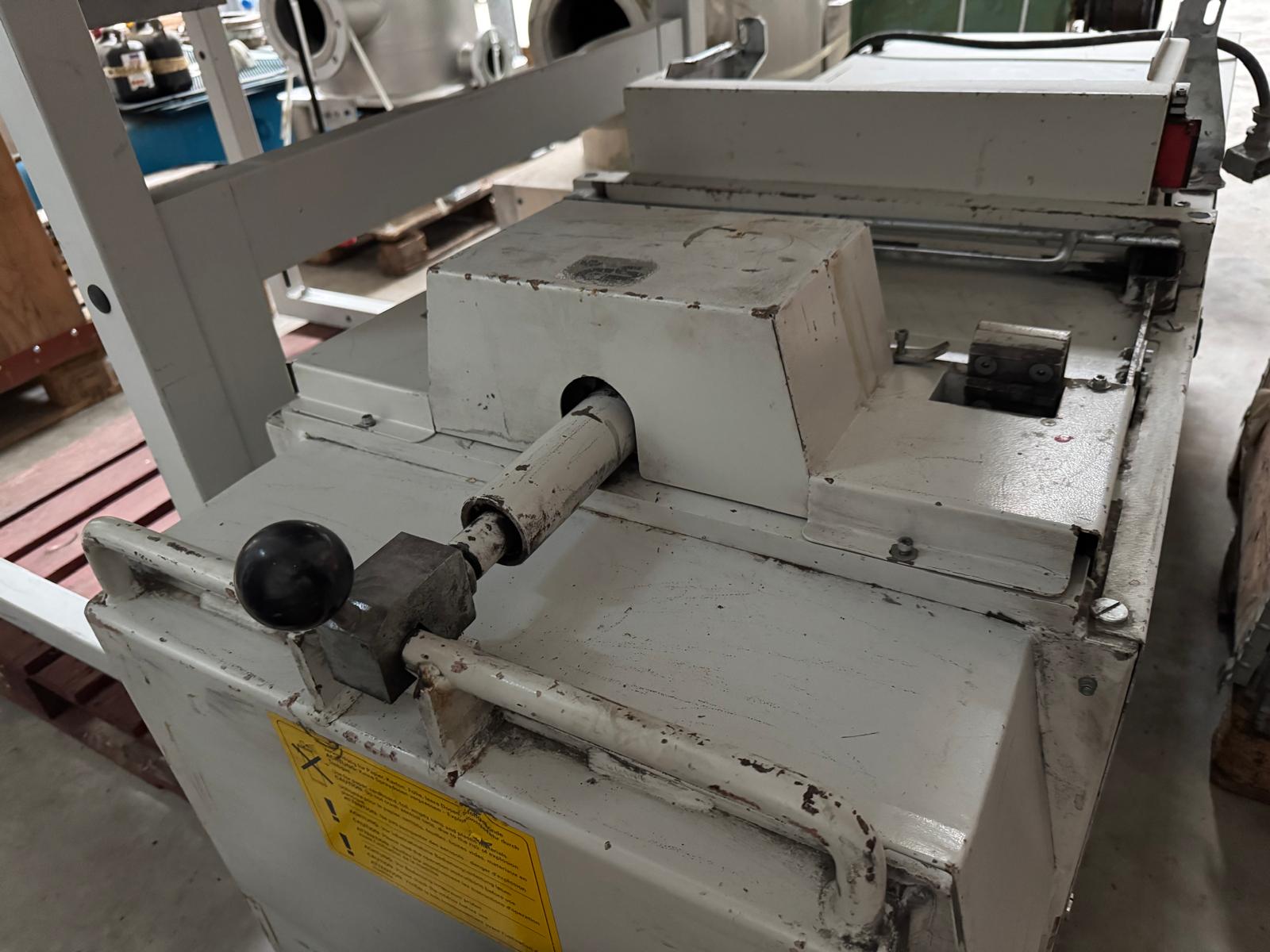

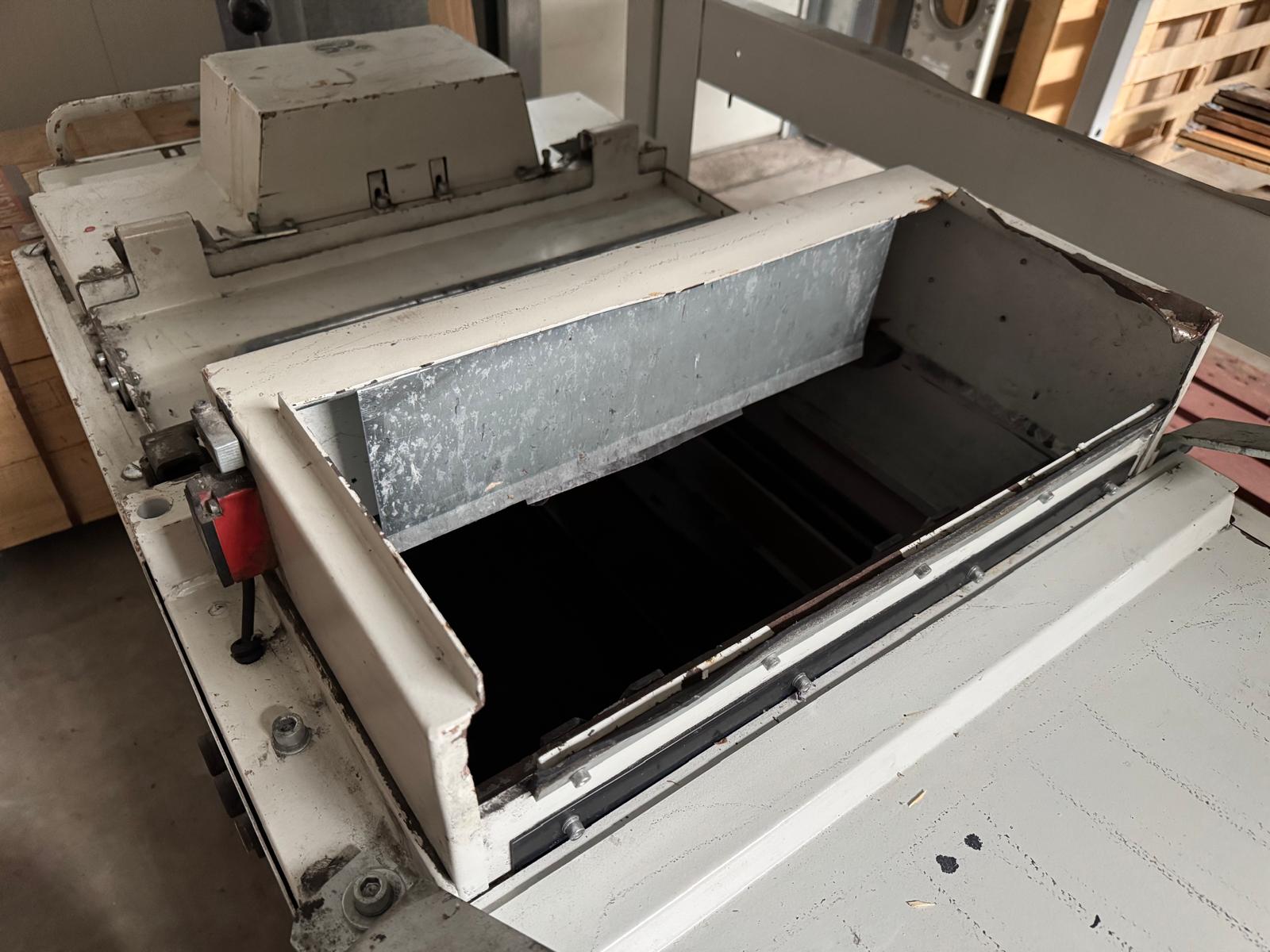

2.) Press
- Pressing force: approx. 8 t
- Power: 4 kW

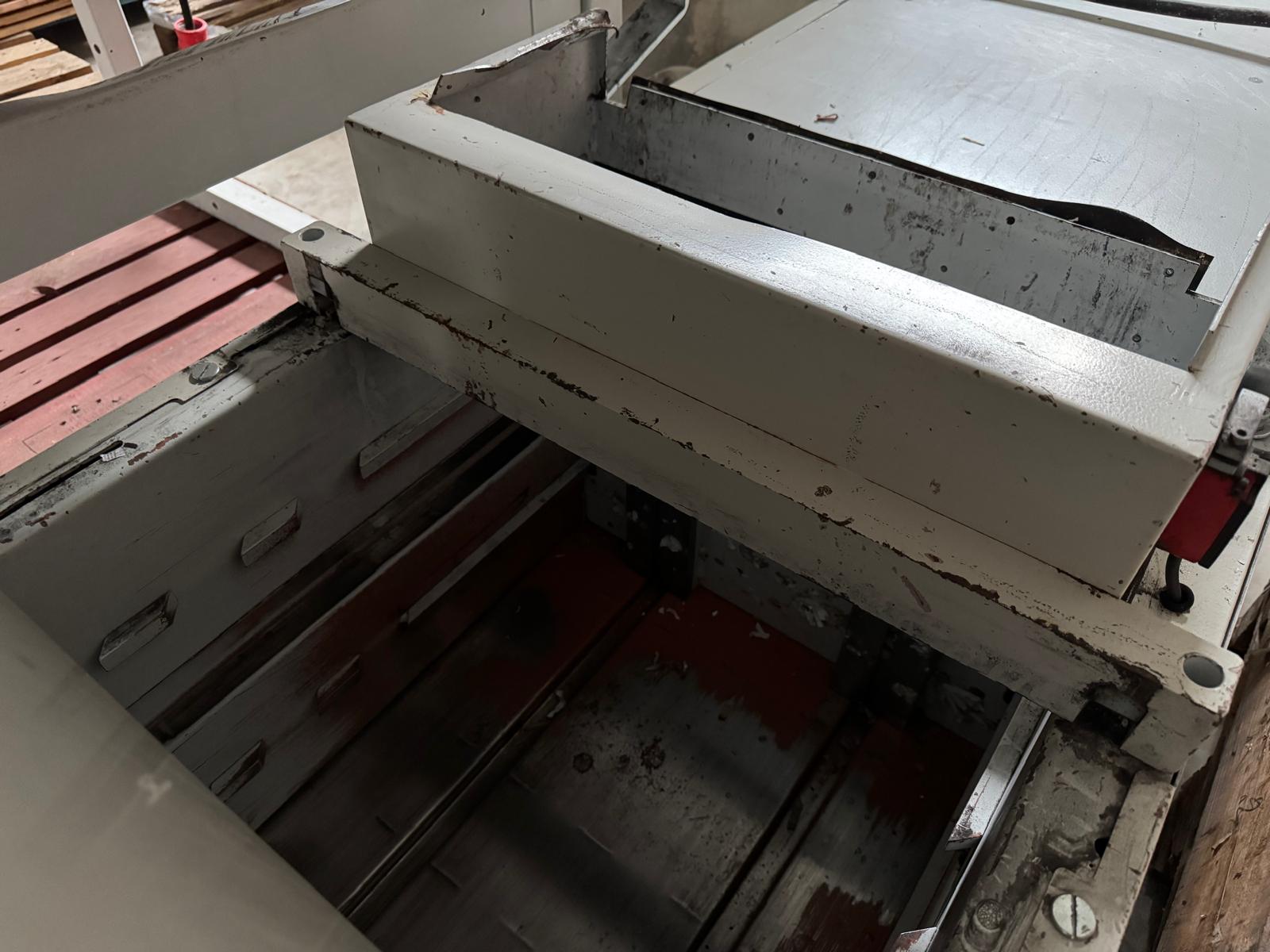

- Filling space: 570 x 460 x 1000 mm
- Filling opening: 570 x 340 mm
- Weight machine: approx. 530 kg
- Weight bale: approx. 60 - 80 kg
- Bale size: 500 x 600 x 750 mm
3.) Entire combination

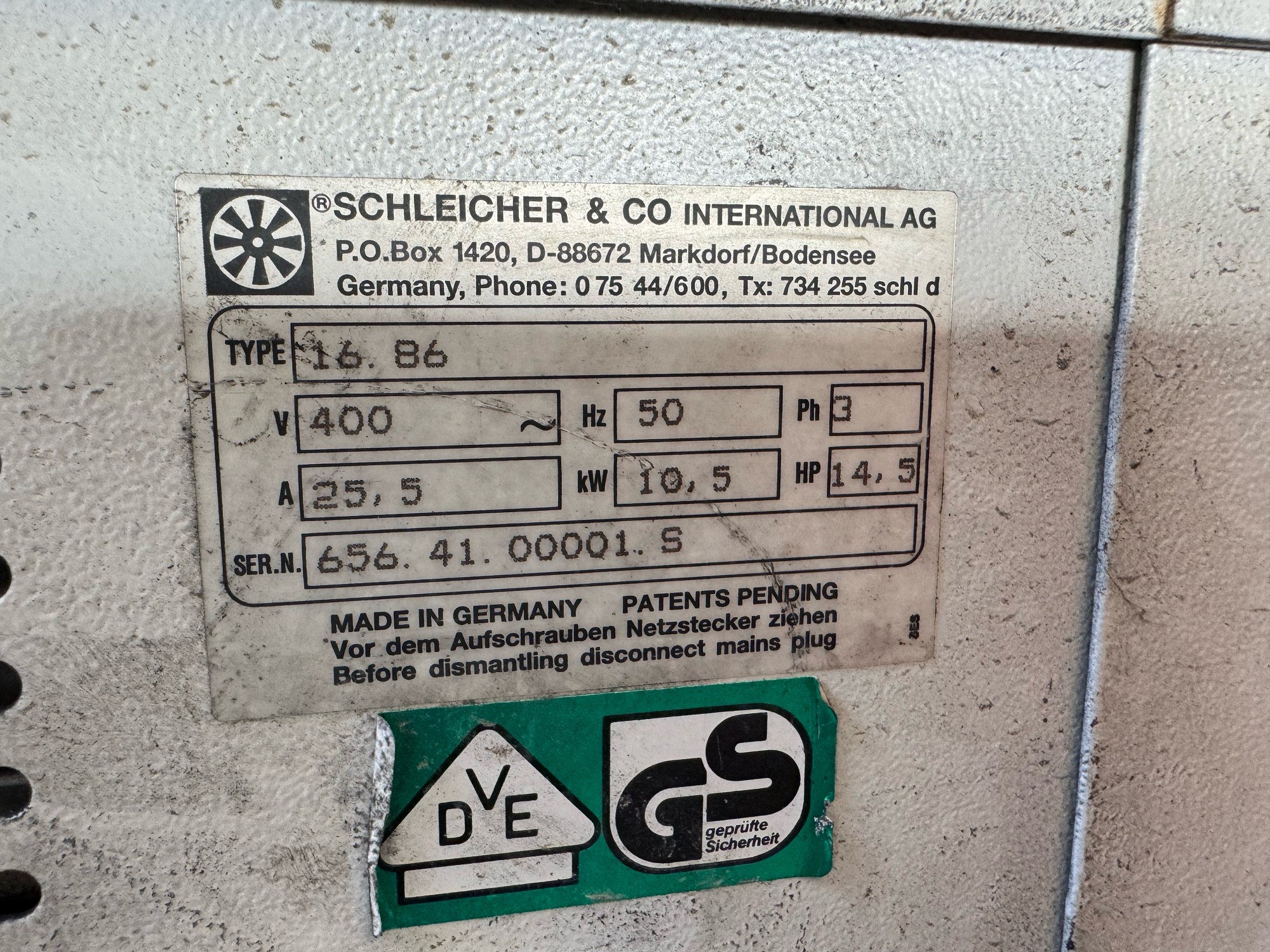

- Connection voltage: 400V/50Hz, 415V/50Hz, 200V/50Hz
230V/50Hz, 220V/60Hz,
200V/60Hz
- Back-up fuse: (fuse gl, allocation type 1)
400V - 415V/50Hz = 35A
220V - 230V/50Hz = 40A
200V/50 - 60Hz = 63A
Length: 2850mm
Width: 1200mm
Height: 1550mm
Length with removal flap open: 3480 mm
Noise level: approx. 61 dB (A)
Total weight: (shredder+press) approx. 1256 kg
