connection of measuring container: DN100

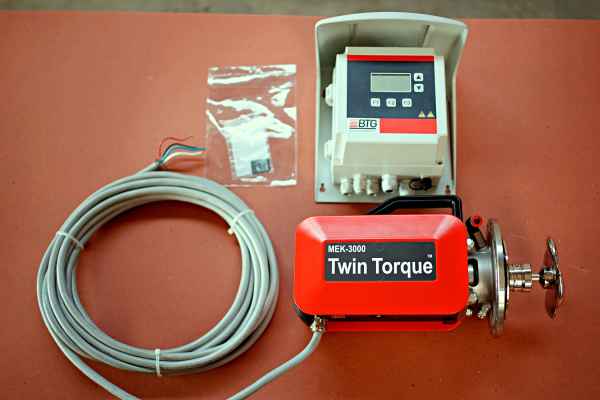

With the MEK-3000 TwinTorque, state-of-the-art in-plant rotating consistency measurement reaches a new level. The combination of the most reliable measuring method with the unique TwinTorque technology leads to an incomparable
Performance in a format that offers significantly lower installation and maintenance costs. The transmitter is powered by single-phase power
the communication platform (CPM).
In addition to the standard MEK-3000 model, there are two special versions: The MEK-3015 model is equipped with protection against unfiltered
pulp, while the MEK-3050 model has a larger flange. For new installations, the small flange design requires minimized pipe connections, while the large flange version mates with traditional nozzles and metering vessels.
The versatility of the MEK series is of course retained in the new MEK-3000 model. So each application throughout the process
be optimized; from the fan system behind the digester, in the screening and washing stages and in the bleaching plant to the machine chest. the total
Flexibility goes hand in hand with an extremely high measurement accuracy and a construction that is minimized by its extreme compactness
maintenance requirements and longer service life.
The MEK-3000 is powered by the CPM, which ensures compatibility with current and future communication interface requirements, from analog output with HART® to fieldbuses.
MEK-3000 is BTG's fifth generation of rotary transmitters and is based on the successful and widely proven MEK rotary transmitters that have sold more than 30,000 units. BTG's unmatched experience and success with rotating consistency measurement and TwinTorque technology thus offers new possibilities for consistency measurement and control.
