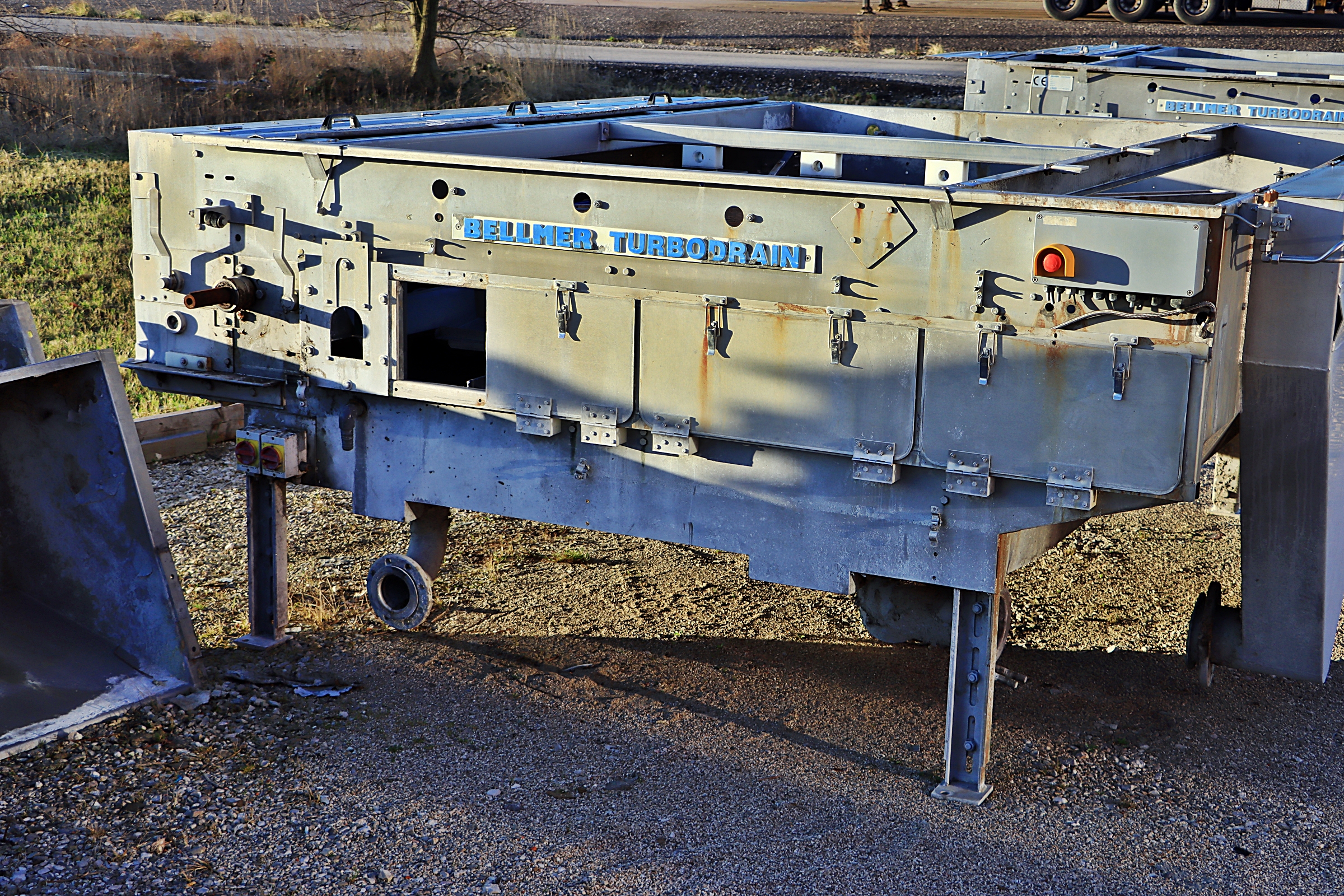

for circulation excess water purification Sludge quantity / h: nominal 150m³ / h maximum 330m³ / h (with 2 turbodrains) Working hours: 24h / day operation possible throughput per TDH4: 100 - 165m³ / h Length: approx. 3253mm Width without drive (transport width): approx. 3514mm Width with drive: approx. 3892mm Working width: approx. 2500mm Height with feet: about 1400-1708mm Empty machine weight: approx 2500kg Operating weight: approx. 4600 kg Working speed: approx. 7 - 42m / min Color: RAL 5002 Drive roller: d = 306mm Wire guide roll: d = 298mm

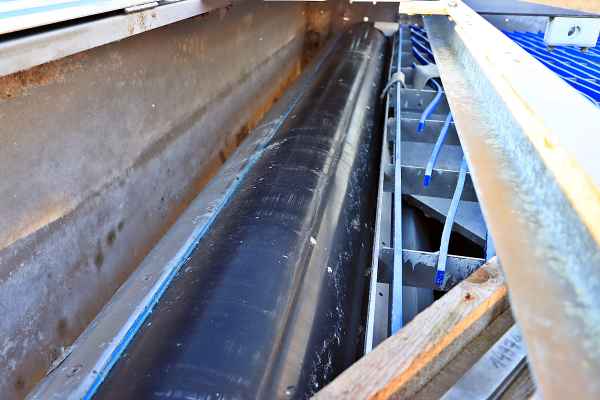

Screen/wire: Wire width: approx. 2700mm Screen length: approx. 5800mm Material: polyester Water requirement for screen cleaning: approx. 14m³ / h Water pressure: approx. 6bar Number of nozzle plates d.2.5mm: 33 pieces Number of harassment: 36 pieces
